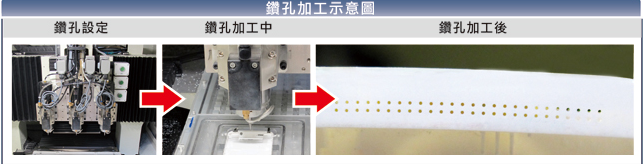

MGS-250T used for heter-shape maching or boring with industrial controller which possess advantages of high precision, stability, speed and reliability, and ccd image offset system. Application on 3c products.
Suitable material for maching PC, PMMA, PVC, POM, PCB, Aluminum,Copper…
|
Item |
Specification |
|
Machine Dimension |
1,700(L) × 2,700(W) × 2,000(H)mm |
|
Machine Weight |
2,700 kg |
|
Operation Method |
MITSUBISHI CNC industrial controller |
|
Workable Area |
X:223mm,Y:500mm |
|
Number of Spindle |
3 spindles (distance of 170mm) |
|
Main Motor/Spindle |
High speed spindle 1.2kw/60,000rpm |
|
Feed Speed |
Highest feed speed of 30m/min |
|
Tool specification |
Grinding wheel Ø10mm(external diameter) and Ø6mm(Shank Diameter) |
|
Toolpath |
CAD / CAM with CNC program |
|
Air Requirement |
CDA above 6kgf/c㎡ |
|
Spindle relevant data |
Vibration ≦ 1G; static deflection ≦ 5μm; dynamic deflection≦ 10μm |
