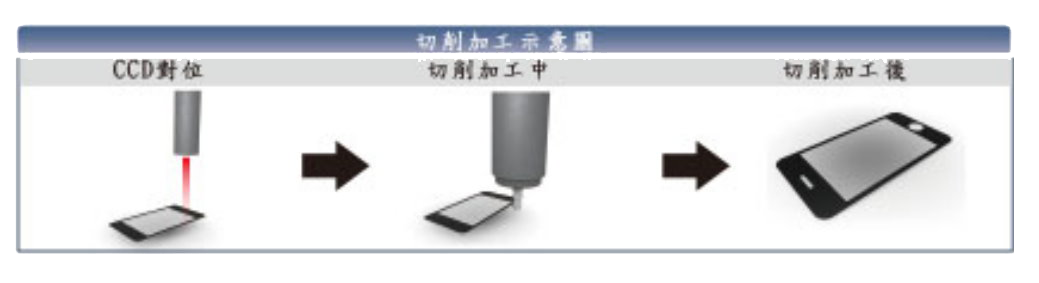

This machine can be used to cut the shaped appearance of the glass plate.
MITSUBISHI industrial controller with high accuracy, high stability, fast and high reliability, to collocate with image compensation systems to cut various styles.
GE-650LE can be applied to the touch panel products, Cover Lens, optical glass, and other products.
Suitable for glass grinding, and cutting of aluminum, copper, resin, PC, PMMA, PVC, POM, PCB, and other related materials.
|
Item |
Specification |
|
Dimension(Reference) |
2,100(L) x 2,600(W) x 2,200(H)mm |
|
Weight(Reference) |
4,300kg |
|
Operation Interface |
MITSUBISHI CNC industrial controller |
|
Processing range |
800x550mm，T=0.3~3.0mm |
|
High-speed spindle power / speed |
1.2kw / 6,000 rpm |
|
Low-speed spindle power / speed |
5.5kw / 12,000 rpm |
|
Feedrate |
Maximum 30 m/min |
|
Tool specification |
High-speed grinding wheel Ø10mm(external diameter) and Ø6mm(Shank Diameter)； |
|
Toolpath |
CAD / CAM with CNC program |
|
Air Requirement |
CDA above 6kgf/c㎡ |
|
Coolant |
Circulating water |
|
Spindle relevant data |
Vibration ≦ 1G; static deflection ≦ 5μm; dynamic deflection≦ 10μm |
|
Optional |
ATC magazine with high speed shaft (including automatic tool length measurement, Shank Diameter Ø6mm, 9 pieces); |
