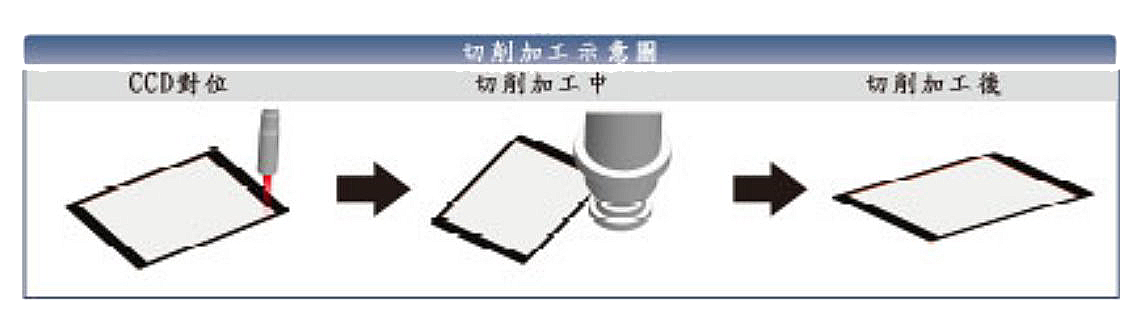

This machine can be used to cut the shaped appearance of the glass plate.
MITSUBISHI industrial controller with high accuracy,high stability, fast and high reliability, to collocate with image compensation systems to cut various styles.
GE-650LE can be applied to the touch panel products, Cover Lens, optical glass, and other products.
Suitable for glass grinding, and cutting of aluminum, copper, resin, PC, PMMA, PVC, POM, PCB, and other related materials.
|
Item |
Specification |
|
Dimension(Reference) |
1,700(L) × 2,700(W) × 2,000(H)mm |
|
Weight |
Approx. 2,550kg |
|
Operation Method |
MITSUBISHI CNC industrial controller |
|
Processing range |
480x520mm，T=0.3~3.0mm |
|
Spindle power / speed |
5.5kw / 12,000 rpm |
|
Feedrate |
Maximum 30m/min |
|
Tool specification |
Grinding wheel Ø100mm(external diameter),Ø40mm(internal diameter); |
|
Toolpath |
CAD / CAM with CNC program |
|
Air Requirement |
CDA above 6kgf/c㎡ |
|
Coolant |
Circulating water |
|
Spindle relevant data |
Vibration ≦ 1G; static deflection ≦ 5μm; dynamic deflection≦ 10μm |
|
Optional |
Vacuum Pumps with water separator system; Optical scale; Grinding wheel automatic cutting; Backlight system with special applications. |
