1. Auto-detection
2. Thin and small can fit into a narrow space.
3. Multi-stage measuring distances can be set up.
4. Easy operation interface with meter.
5. With meter easily to manage the production line by setting the upper and lower static electricity alarm limits.

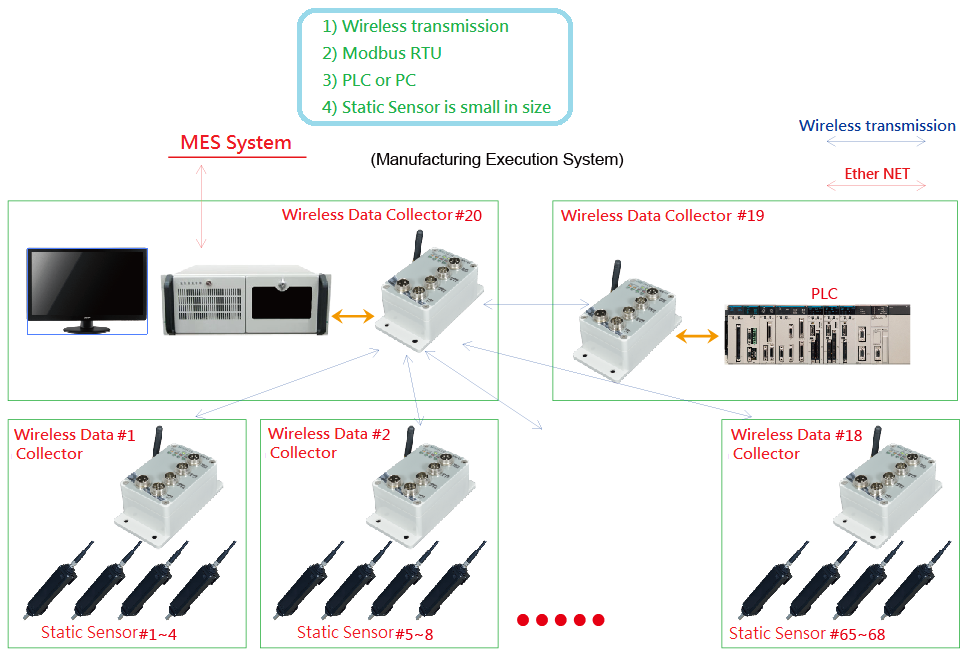

6. With MD-02 or DCS-01 can support Modbus RTU, connect with PC or PLC to collect and analyze data.
|
Item |
Specification |
|
Model |
MESD-SE01 |
|
Input Power |
DC 12~24V |
|
Operation range |
10~40mm(withMD-01) |
|
Voltage measurement |
±2KV / ±20KV |
|
Sensitivity |
1V / 10V |
|
Output mode |
Voltage 0~5V |
|
Linear distortion |
±3.5% |
|
Response time |
10ms |
|
Ambient Temperature |
15～40℃ (Indoor) |
|
Ambient Humidity |
35～65%HR (No condensation) |
[ Meter with RS485 function ]
|
Item |
Specification |
|
|
Model |
MD-02 |
|
|
Measuralbe range |
Max 250mm/sec |
|
|
Period |
100ms(ms) |
|
|
Unit |
mm/sec ; m/sec2 |
|
|
Protocol |
Modbus RTU(RS485) |
|
|
Format |
8-N-1 |
|
|
Transmission rate |
9600, 19200, 38400, 57600bps …Max 1152000 bps(Default) |
|
|
Output mode |
Relay*2 |
|
|
Display |
Color LCD panel |
|
|
Power/Consumption |
AC110~240V / 0.2VA |
|
|
Installed size |
48 x 48mm(Standard type) |
|
|
Ambient temperature |
0～40℃ (Indoor) |
|
|
Ambient humidity |
35～65%RH (No condensation) |
|
[ Meter without RS485 function ]
|
Item |
Specification |
|
|
Model |
MDA-02 |
|
|
Measurable range |
Max 100mm/sec |
|
| Period |
100, 250, 500, 1000 ms |
|
| Output mode |
±3% |
|
|
Transmission rate |
1, 5, 10, 50, 100, 200, 500, 1000, 3000, 5000ms |
|
|
Display |
Color LCD panel |
|
|
Power/Consumption |
DC 12~24V / 40mA Max |
|
|
Installed size |
30 x 30mm(Standard type) |
|
|
Ambient temperature |
0～40℃ (Indoor) |
|
|
Ambient humidity |
35～65%RH (No condensation) |
|
★Providing customized system integration, please contact us for further information.
