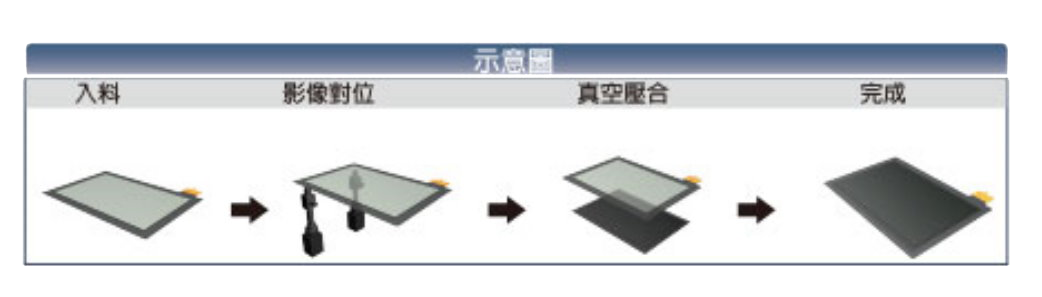

Apply to combine CG glass with SENSOR glass (TP & LCM). Duplex mode: up-layer glass put into the feeding station, down-layer glass put into the chamber by manual, and combine by CCD Alignment.
MVA-7 is used for mobile phone panels or touch panels of CG / SENSOR or TP / LCD OCA laminating applications.
|
Item |
Specification |
|
Machine Dimension |
1300(L)×1300(W)×1845(H)mm |
|
Product size |
3”~7”(Tooling Exchange) |
|
Pass Line |
1000 ± 25 mm |
|
Accuracy |
± 0.05 mm (Feeding tolerance Not included) |
|
Tact Time |
18s/pcs |
|
Applicable Product |
CG/SG or TP/LCM |
|
Combination Pressure |
MAX : 600kg |
|
Alignment mode |
CCD automatic alignment |
|
Chamber vacuum value |
100pa |
|
Controlling System |
PC BASE |
|
Feature |
Dual-chamber structure, Manual loading/unloading |
