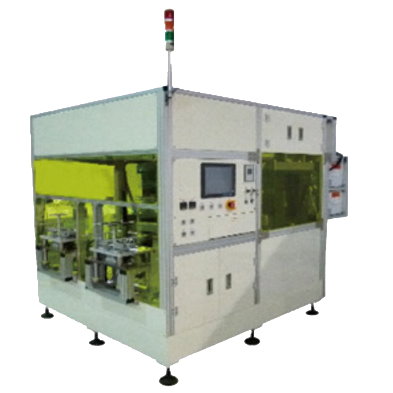

Dual-chamber Vacuum Lamination Machine MLCA-7X15.6

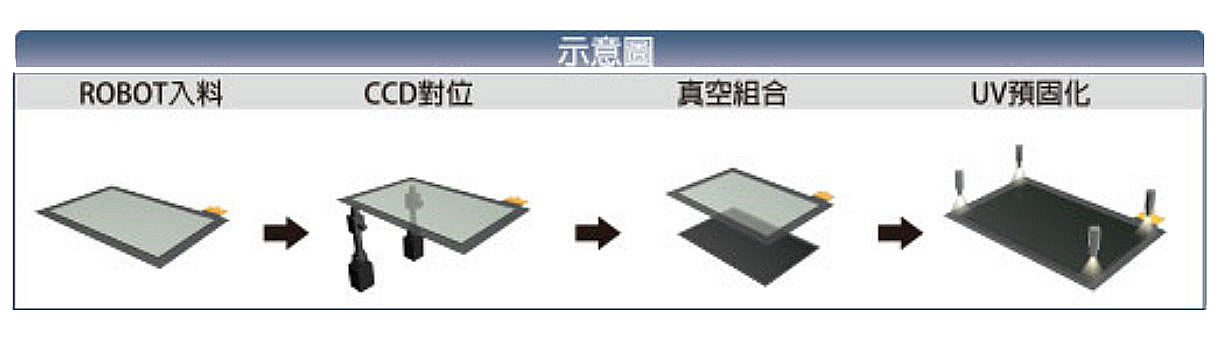

The device uses a vacuum environment for business cooperation OCR pressure, with a CCD automatic image registration system, a substantial increase in product pressure accuracy, and use double-chamber vacuum PUMP common design to reduce COST, increase productivity, import ROBOT automatic feeding and avoid secondary pollution, improve product yield.

MLCA-7*15.6 is used for mobile phone panels or touch panels of CG / SENSOR or TP / LCD OCA laminating applications.

Item

Specification

Machine Dimension

2700(L)×1700(W)×2300(H)mm

Product size

3”~7”(Tooling Exchange)

Pass Line

1000 ± 25 mm

Applicable Product

CG/SG or TP/LCM

Alignment mode

Overall OR MARK alignment

Controlling System

PC BASE

Feature

Dual-chamber structure, Manual loading/unloading

Vacuum system

Share a set of dual-chamber vacuum pump
