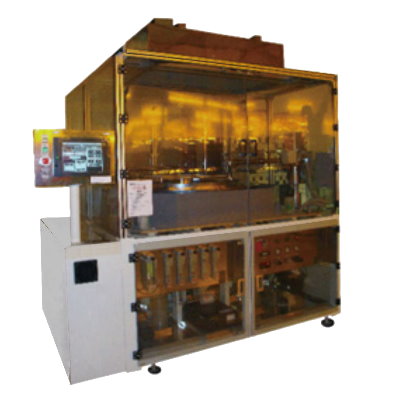

Mask Cleaner,MDMC-420x530&800x960

Mask Cleaner,MDMC-420x530&800x960

The most important is safety, stable environment and equipment, and to comply with the process of cleaning requirements when cleaning the TMA.
Considering energy saving and easy to operate features to create customer profits.

Inquiry List (0)

Summary

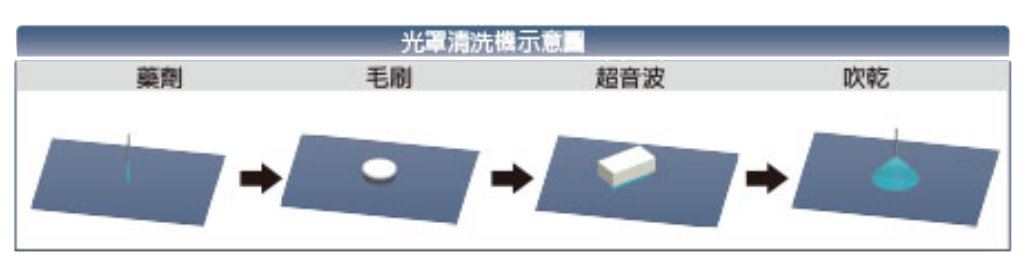

SPIN rotating cleaning forms effectively to remove the dirt that attached to the surface of the TMA
In response to a variety of dimension, it is easy to replace a fixture to improve machine functionality
Washed with ultrasonic cleaning, detergency enhancing
Touch screen interface is user-friendly, easy to operate and get started
According to customer-specific requirements can change the process of the number of slots cleaning

Specification

Item	Specification
Machine Dimension	MDMC-420*520	MDMC-800*960
Machine Dimension	2200(L)×1850(W)×2400(H)mm	2900(L)×2200(W)×2400(H)mm
Mask size	420(L)x520(W)x5(T)mm	800(L)x960(W)x7.8(T)mm
Rotating Stage mechanism	Rotate by Servo motor,Speed 30~1000 rpm	Rotate by Servo motor,Speed 30~600 rpm
Brush cleaning mechanism	Optional supply lotion loop system or artificial pour liquid
Cleaning brush tank	Rotating brush with the sonication to clean brush
Ultrasonic washing system	Ultrasonic washing Stage
CDA dry institution	Mode using the rotary and inflatable
Operating method	PLC controlling system
LD/UD System	Manual loading/unloading
