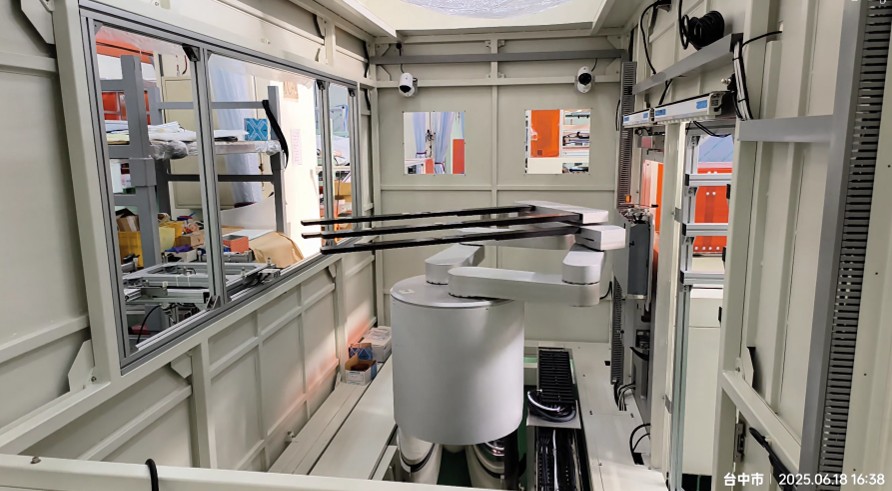

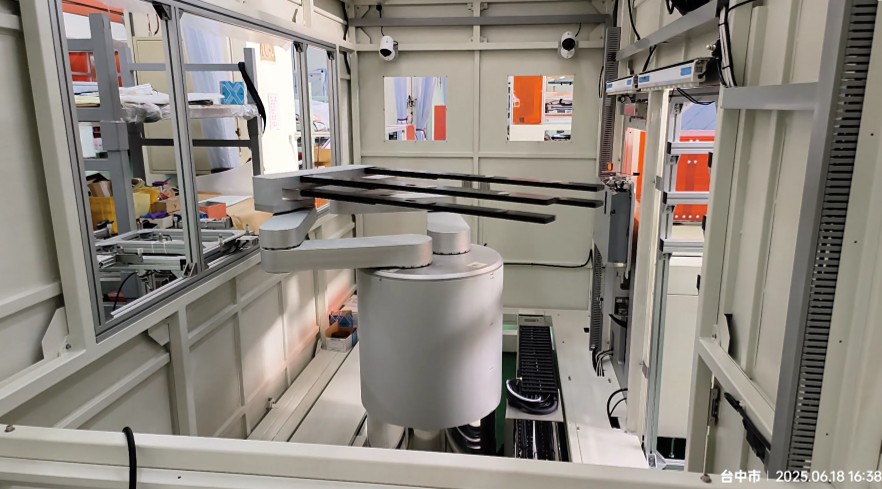

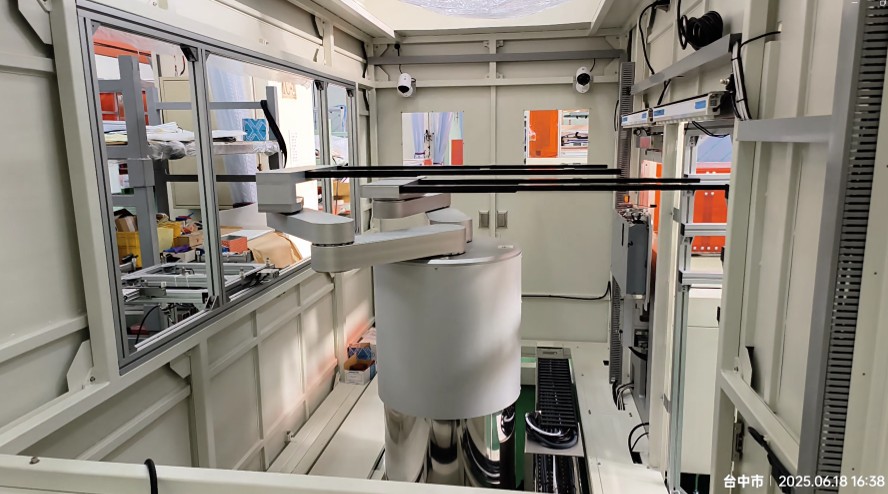

Process: Horizontal transport of various flat products. Applicable process: PLP, FOPLP semiconductor advanced packaging panel-level product transport process.
Key specifications:
Dual ARM for exchange and transport.
Product size Max 700x700mm.
Product load Max 10kg.
T-axis is customized design and production.
|
Robot Model |
|
||
|
Type of arm |
Dual Arm |
||
|

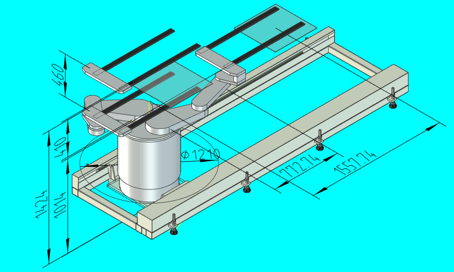

Motion Range |
Telescopic Axis (Lower Arm) |
R1-axis |
1557mm |
|
Telescopic Axis (Upper Arm) |
R2-axis |
1557mm |
|
|
Lift Axis |
Z-axis |
460mm |
|
|
Rotation Axis |
θ-axis |
330° |
|
|
Speed |
Telescopic Axis (Lower Arm) |
R1-axis |
1300mm/sec |
|
Telescopic Axis (Upper Arm) |
R2-axis |
1300mm/sec |
|
|
Lift Axis |
Z-axis |
400mm/sec |
|
|
Rotation Axis |
θ-axis |
2.62rad/sec |
|
|
Repeatability |
Telescopic Axis (Lower Arm) |
R1-axis |
±0.1mm |
|
Telescopic Axis (Upper Arm) |
R2-axis |
±0.1mm |
|
|
Lift Axis |
Z-axis |
±0.1mm |
|
|

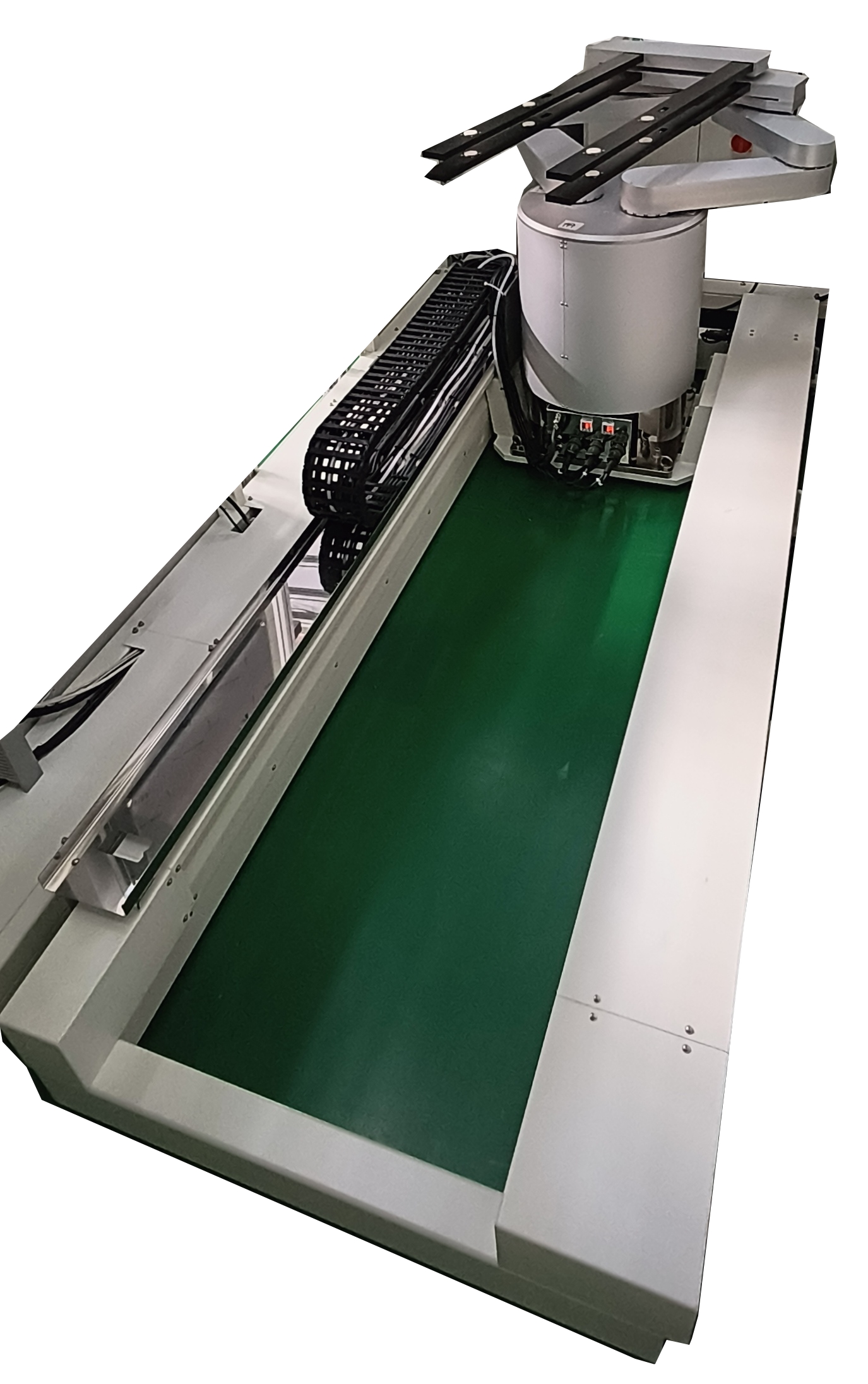

T Axis |
1500mm |
||
|
Robot Weight |
200kg |
||
|
Max Payload |
10kg |
||
|
Maximum move Glass size |
W620×L750mm |
||
|
Cleanliness |
ISO Class 3 |
||
