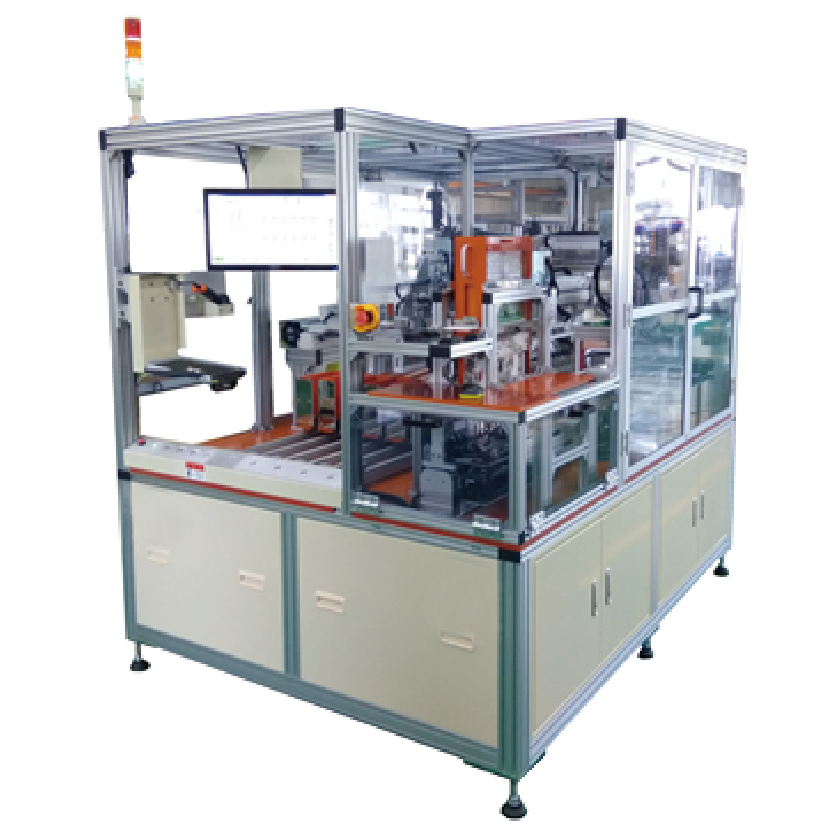

Battery Sorter

l-ion lithium ion battery automatic sorting machine.The battery cell is manually fed into the cassette for feeding and conveying.Automatically scan 1D or 2D codes.OCV/ACR measurement and classification are recorded in the cell barcode information.According to the OCV/ACR range of the battery and sorted into the cassette.For manual removal。
Battery input sorting machine.Equidistant feeding method of electric core through split type turntable.Read the cell bar code and perform OCV/ACR measurement/classification in sequence.Record measurement data in real time:LOT, Barcode, OCV/ACR, polarity, measurement time。





Adopt high internal resistance high-speed measuring instrument HIOKI 3561 specification, which can measure the internal impedance and DC voltage of the cell at the same time.



ltem

Specification

Machine model

MSAM-18650F

Machine Dimension

  2000(L)x1800(W)x1900(H)mm

Pass Line

  900mm

Control System

  PC-Based

Suitable for

  18650/26650/21700 battery

Peed type

Cassette feed / Cartridge receiving

Production efficiency

≧20000pcs/8hrs

OCV measurement

OCV±0.01%rdg,±3dgt

ACR measurement

  ACR±0.5%rdg,±5dgt
