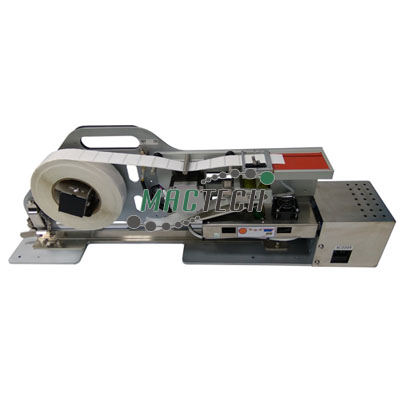

Applied to automatic label stripping operation to separate the single label paper from the bottom paper and provide the function which can take the label quickly. This labeler machine can be connected with automatic equipment for communication work, or choose semi-automatic manual station is used.
1. Automatic or semi-automatic operation can be set.
2. The mode of cassette can be connected and installed quickly, and removed conveniently.
3. Built in PC BASE single chip system.
4. It is easy to replace and conveniently recycle the paper roll.
5. The length of label can be easily adjusted by accurate optical fiber photoelectric positioning.
6. Lightweight and not occupy space, with small size which can be quickly removed, and the label specifications can be changed easily.
7. Small label can be arranged by rows and stripped simultaneously.
|
Item |
Specification |
|
|
Model |
MLF-40 |
MLF-80 |
|
Labeler Length |
10~70 mm |
|
|
Labeler Width |
10~36mm |
10~80mm |
|
Paper Roll Inside Diameter |
75 mm |
|
|
Paper Roll Outer Diameter |
below 150 mm |
|
|
Power Supply |
AC 110-220V，50/60HZ |
|
|
Machine Dimension |
640(L)*110(W)*260(H)mm |
640(L)*160(W)*260(H)mm |
|
Weight |
12kg |
14kg |
